- LINUX O/S (IBM´s PowerPC 405, 96MB SDRAM)
- 2 Smart Card reader
- 2 Slot common interface
- 2 DVB-S TUNER
- Personal Video Recorder (HDD option)
- Up to 250GB HDD supported

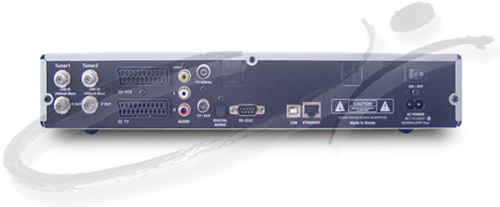

- Ethernet 10/100 , USB 1.1 , RS232 connection support
- Application and Expansion
- LINUX O/S enables ultimate applications and expansions to fulfill the customer’s need
- Two Channels Recording and One Prerecorded File Playback
Receiver is supplied in full configuration, after turning on is ready for use without any software upgrade.
- Full graphical menu
- User friendly control
- DiSEqC 1.0, 1.1 switches and DiSEqC 1.2 driving motors, USALS control supported
- 64 MB SDRAM extendible up to 96 MB
- Eleganter hardware version
- Two different parts of power supply, with different part for HDD
- Separate module of power supply isolated from mianboard.
- Ventilator for cooling HDD
Variable possibilities of configuration of two satellite tuners
- Simultaneous recording of two channels while playback of prerecorded programme from HDD
- Simultaneous Double Descrambling on 2 CI CAMs
- Watching 1 scrambled ch. while recording another scrambled ch. by using 2 CAMs
- By some coding systems possibility of simultaneous recording or recording/watching
- of two programmes by using one card.
Playback of prerecorded programs without CAMs Almost Unlimited Channel Memory (Up to 10,000 channels)
- Variable HDD Size is Applicable for production up to 250 GB or above
- Installation of posibility of any HDD
- Enhanced Search Channel Option:
- Search by all satellite
- Search by satellite/ network
- Search by all TP scanning
- Support fast TXT (500 TXT pages in memory)
- Digital optical output SPDIF with AC3 supported
- Unlimited Trick Play
- Unlimited trick play on any of Real Time Live Programs/ Recording Program/ Playback of
Prerecorded
- possibility of getting back in time on real time canal
Smart EPG
- Automatically updates Program Info.
- EPG shows all Satellites’ Program Guide
- Search programs by Genre on the EPG
- Enhanced Recording Plan by timer setting/ EPG
Supported USB 1.1 to connect PC / editation files in PC, upgrade firmware...Mdification settings and devices in PC. Ethernet 10/100 port supported.
Possibility to connect receiver to Internet and interface receivers through LAN, automatic identification and configuration of network connection.
Possibility of automatic software upgrade through Internet.USB Connection to PC for PC editor/ enhanced program utility.Ethernet 10/100 port supported. |
